4G LTE Bluetooth USB port smart mobile terminal POS with Barcode and Fingerprint

FOB Reference Price:Get Latest Price
US $199-499 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
1000 Set/Sets per Week
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Operating system:
USB port smart mobile terminal POS with Barcode and Fingerprint
Magnetic Card:
Magnetic strip card (dual tracks)
Contact IC Card:
Compatible with ISO 7816-3 and EMV4.2 payment standard
Fingerprint Sensor:
Live biometric fingerprint sensor/reader, 508DPI
Built-in thermal printer, speed: 25 Ips ,Standard paper roll 58mm
13.56Mhz, ISO / IEC 14443 A, ISO / IEC 14443 B, ISO 15693, 3-5cm
1 Psam card slots
Barcode Scanner:
1D 2D (QR) code scanner
Packaging & Delivery
Packaging Details
standard packing, neutral packing, or customized packing as per requirements by clients
Delivery Time
Within 7 days after receive payment

4G LTE Bluetooth USB port smart mobile terminal POS with Barcode and Fingerprint

CPOS800 Description

CPOS800 is combined with financial POS, data communication,printing,wireless broadband Internet access and other functions,using Qualcomm CPU,high-performance laser bar cose scan engine,supporting 1D bar code scanning, and 2D bar code scanning optional,with extended features like fingerprint identification,NFC, etc.With 4 inch capacitive touch screen,setting up Android OS platform,it can offer all-in-one applications of computing,secure payment,fast data collection and information access at anytime and anywhere.


Physical Parameter
DesignBar phoneKeysSeventeen
Dimensions (L*W*D)180mm*75mm*33/46mmWeight390g(without battery)
Function Parameter
Operating SystemAndroid 6.0Display4 inch TFT LCD, Resolution 800*480
CPUQualcomm 8909, 1.2Ghz, Quad CorePanelCapacitive touch  screen
Memory and ExtensionT-Flash/Micro SD Card, up to 32GBCameraRear 8.0M Pixels, Auto Focus with Flash
GPSGPS,GLONASS supported,10mNetworks

GSM: 850/900/1800/1900


BluetoothBT4.0 LE
WIFIIEEE 802.11b/g/n
Memory2GB RAM,16GB ROM
Optional Functions
Printer58mm,thermal printer,speed 70mm/sBarcode Scanner1D Linear Scanner :
UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes
Contactless IC CardISO/IEC 14443 Type A/B,ISO15693
Contact IC CardCompatible with ISO 7816-3 and EMV4.2
payment standard
2D Imager Scanner:
PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
PSAM Card1 Psam card slots
ID CardReading distance 0~5m
Fingerprint SensorCapacitive Sensor, 508 DPI, PIV/FIPS 201 compliant, FBI certified
UHF RFID860~960Mhz
Other Parameter
Battery Pack7.4V, 3000mAh ,MTBF no less than 10000 hoursHeadphoneSupported, 3.5mm
SerialUART or RS232Speakersupported
USBMini USB OTG,USB 2.0 HS compatibleVoice CallSupported
AC/DC AdapterDC 12V/2AVibration Supported
RuggednessIP54, Waterproof, Dustproof
User Environment
Operating Temp-10℃ ~ 60℃Humidity5% ~ 95% (non condensing)
Storage Temp-20℃ ~ 70℃Roller Drop Test500 times (1000 hits)


Fingerprint sensor: Capacitive Touch Screen, 508 DPI, PIV/FIPS 201 compliant, FBI certified

 Qr Code Scanner: Barcode scanner included.

1D Laser barcode scanner
[1D laser barcode scanner] Motorola EM1350, Honeywell N4300,Mingde

2D COMOS scanner
[CMOS scanner] Motorola SE4710, Honeywell N3680SR

Contact IC Card:ISO 7816-3, PBOC3.0, EMV LEVEL 1&2 COMPATIBLE, qPBOC, PAYPASS, payWave standards

Contactless IC Card Reader:ISO/ IEC 14443 Type A&B, MiFare Card supported, ISO15693 supported

POS Printer :58mm,thermal printer,speed 70mm/s. Barcode/image/Black and white photos

Rugged IP54

Corewise CPOS800 Rugged Handheld PDA can withstand multiple drops onto concrete from 1.5 meters.

IP54: Waterproof, dustproof and drop resistant. Suitable for all kinds of complicated industrial environment.

Widely applied in e-commerce,finance and insurance,retails,logistics and courier,police law enforcement, security trace ability enforcement,express transportation and mobile ticketing

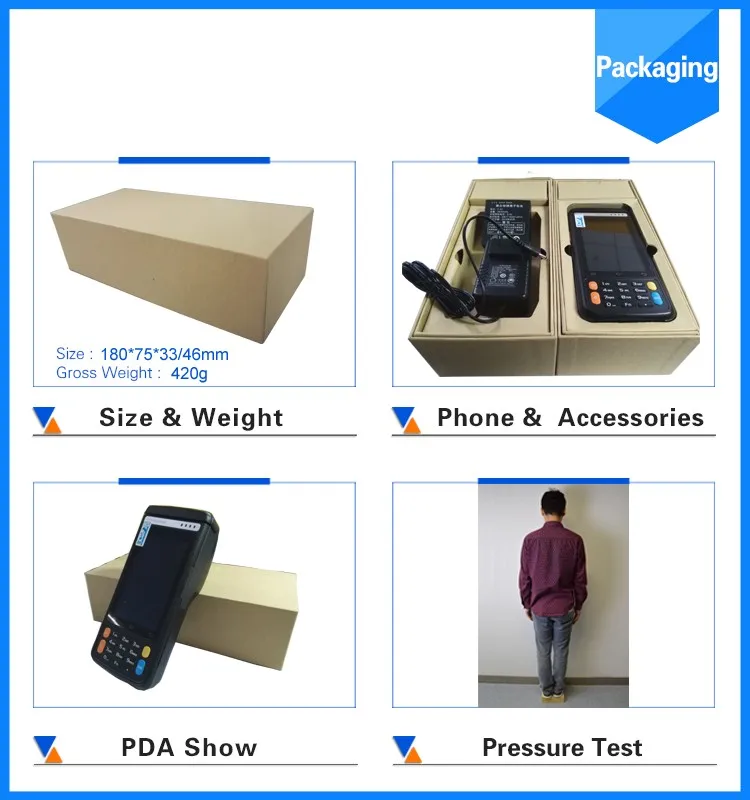

Standard neutral packing1 PCS each box,10 boxes  with one carton box.  or as per required for rugged android handheld terminal .

Shipping  by express way like DHL ,Fedex or TNT;by air or by sea.



Related Products
Company Information

Corewise is a leading high-tech enterprise specialized in manufacturing various terminals around smart phones integrated with fingerprint sensors, RFID writers/readers (13.56 MHz for proximity or 840-960 MHz for long range), barcode scanners and thermal printers. These seemingly premature products are hardware ready for further developments to fit any needs using technologies of biometric fingerprint imaging/capturing, RFID & barcode scanning.

Our devices are semi-finished product, which requests further development resorting to our SDK on basis of its hardware.

Normally the Buyer shall have technical development capability and technical support capability. Of course we will provide

online help/support if required.

We provide free SDK ,DEMO and the application development guide and development environment introduction,

meanwhile,we will provide technical support in your development process.

(You are also welcome to commission this development job to us,we will charge it according to the development period)
